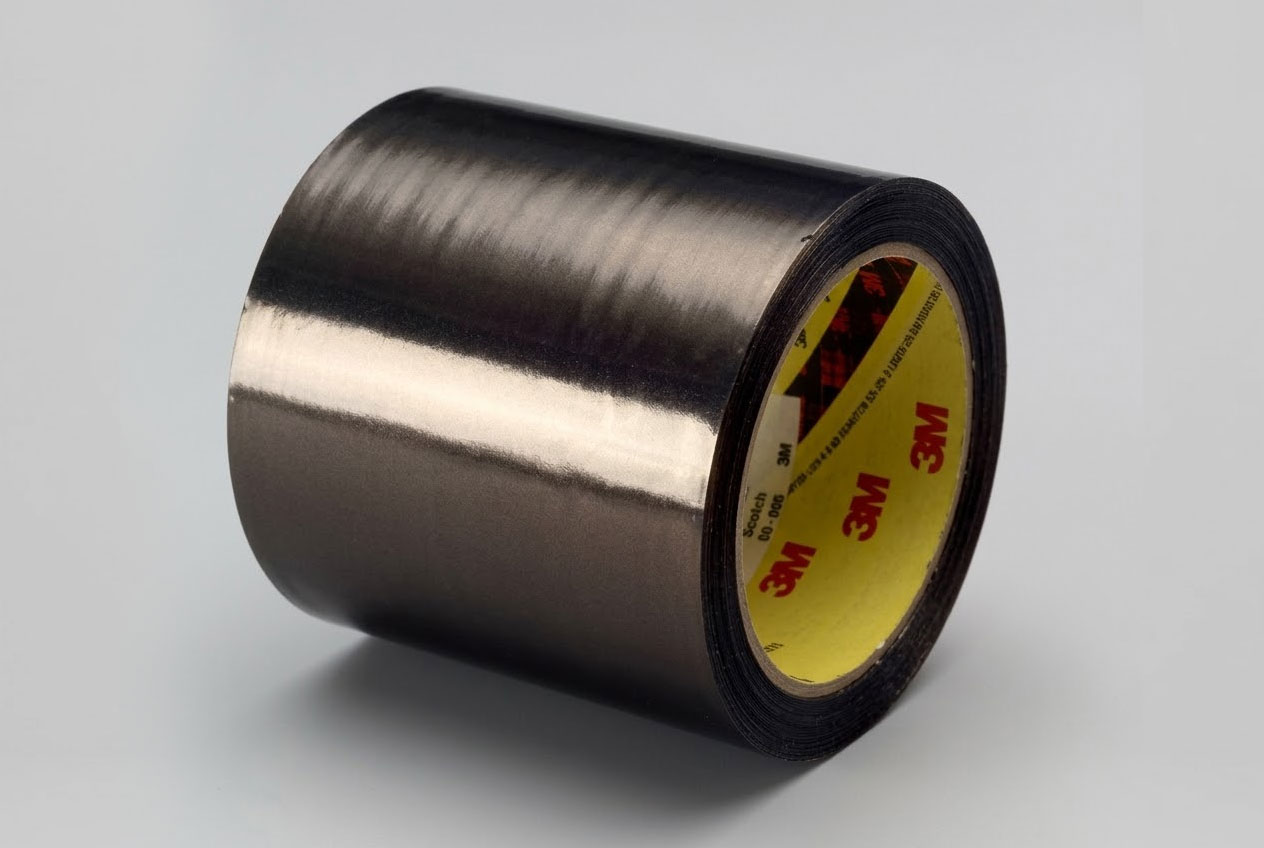

3M™ PTFE Film Tape 5490



3M™ PTFE Film Tape 5490 uses a polytetrafluoroethylene (PTFE) film backing. This material has an extremely low coefficient of friction, combined with a pressure-sensitive silicone adhesive, to provide a smooth, non-stick surface on a variety of substrates to support material movement in a variety of lay-up applications.



Outstanding features:

  • Non-stick PTFE membrane for exceptional gloss surface for easy cleaning
  •
  • Silicone based adhesive for residue free removal on many surfaces
  •
  • Wide temperature range for performance on hot machinery and equipment
  •
  • 3M™ PTFE tape is flatter than conventional grooved PTFE film tapes





Typical properties



Backing (Carrier) Thickness (Metric)

0.05 Millimetre

Maximum heat resistance (degrees C)

260 degrees C

Glue root

Silicone

Expiry

18 Months

Traction (Meters)

385 N/100mm

Product color

Brown

Brand

3M

Reinforced membrane material (Carrier)

Extruded PTFE

Units per carton

1.0 Roll

Tape thickness excluding anti-stick coating (meters)

0.094 Millimetre

Applications in industries

Household, Electronics, Industrial, Military and Government, Metalworking, Special Vehicles, Aviation, Automotive Auxiliary Industry Market, Transportation

Length (Meter)

33 Meter

Width (Meters)

304.8 Millimeter
